A COMPREHENSIVE RANGE OF PALLETIZING SOLUTIONS FOR INDUSTRIAL AUTOMATION
Packing plants have to handle a range of bag sizes, materials and capacities. If you want to avoid bottlenecks, the palletizing system must keep up with the packing line. But it’s not just about high capacities. Modes of transport are also different from place to place, and your automatic bag stacking configuration must take this into account. Slip sheet, stretch hood, a wooden pallet base or no pallet at all – your system needs to be flexible enough to meet your needs, even if those needs change.
ENGINEERED FOR EXCELLENCE,BUILT FOR VERSATILITY
CAPACITY UP TO 6000 BAGS PER HOUR
We can reach high capacities, depending on your bag dimension, pattern configuration and the number of layers to be stacked. The maximum total load for each stack is 2.75 t.
WIDE RANGE OF SOLUTIONS TO SUIT YOUR NEEDS
Our palletisers are suitable for standard wooden or plastic pallets, plastic slip sheet, carton board, palletless line, stretch hood or sling bags.
FLEXIBILITY AND SPEED FOR DIFFERENT SIZES
Automated adjustment and regulation for multiple bag size/layer configurations is easy thanks to the centralised operator panel, which memorises your preferred stacking parameters.
QUICK AND EASY MAINTENANCE
Thanks to the modular concept, with no pneumatics or hydraulics involved and only electrical controls and actuators, maintenance activities are easy and cost-effective. Critical spare parts are kept in stock and can be delivered on demand.

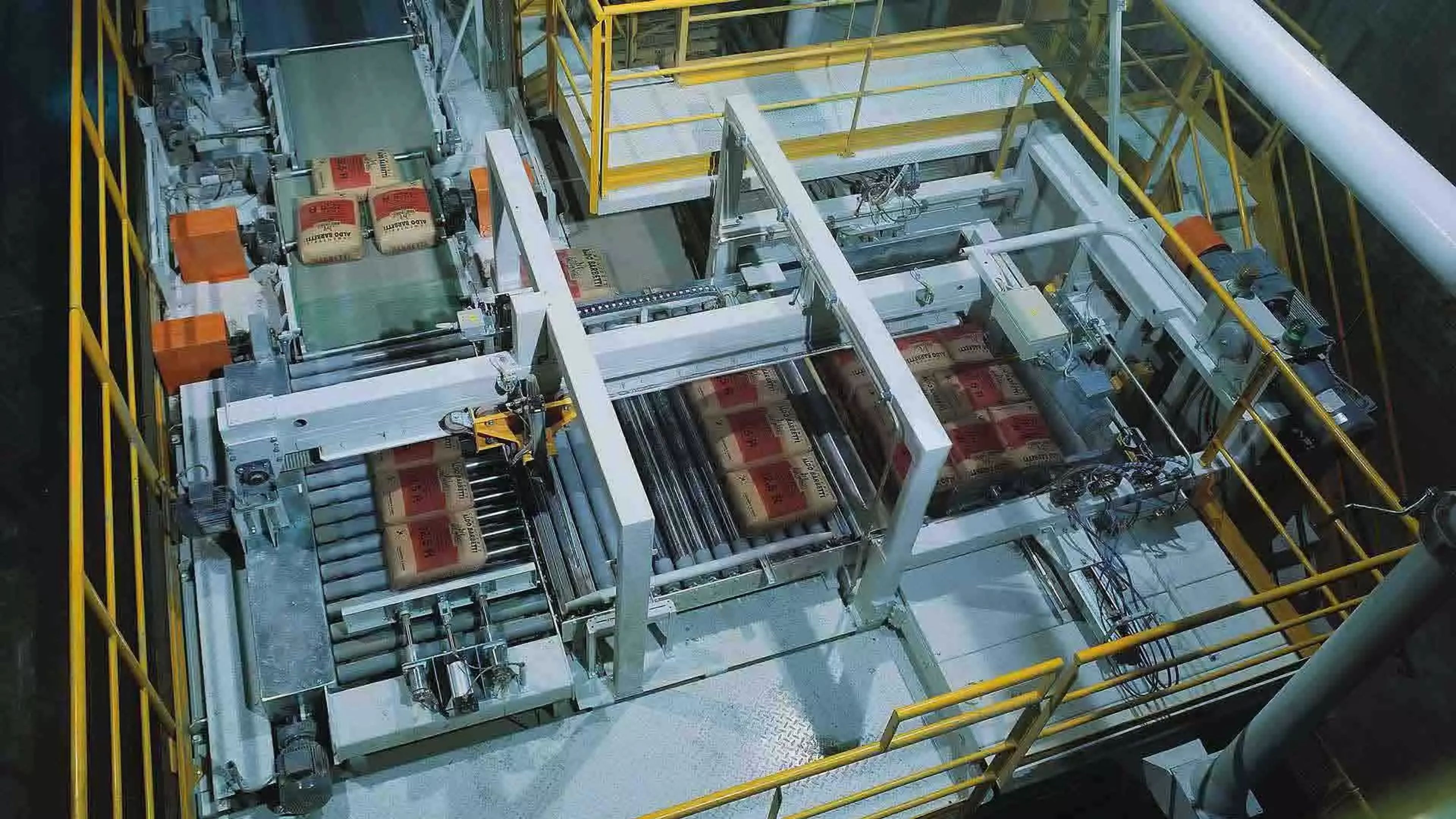

Simple installation, easy operation: the VENTOMATIC® POLIMAT® bag palletizing systems
Product range
The EVO series includes three configurations — low, medium and high capacity — designed to optimize palletizing efficiency for any operational requirement. Low capacity models handle up to 2500 bags/h, medium capacity models up to 3600 bags/h, while high capacity solutions reach speeds of up to 6000 bags/h. All EVO models are designed to process paper, plastic and woven PP bags across a wide variety of sizes and weights, ensuring maximum versatility and consistent performance in every application.
Flexibility
A wide range of bags/layer patterns can be accommodated, covering all conventional bag sizes and pallet dimensions, with stack stability always ensured.
Electrical board and operator control panel
The HMI is easy to use with a 5.7 in. touch screen for simple scrolling. Setting the parameters for variable bag and pallet dimensions is quick and easy. Machine alarms, message display and historical log of alarms helps you keep on top of your system. You also benefit from: Diagnostic data and troubleshooting support Machine data with local back-up Easy interface with a supervision system for data exchange Fieldbus control network Depending on your needs, we can integrate the palletizing lines with several additional technologies in order to optimise the handling system and/or the mode of dispatch.How do you prefer to secure your stack? We cater for a range of solutions, including: Stretch hood for stack protection and stability; Palletless for waterproof packaging of the load, available in different configurations according to the stacking capacity; Hot process (thermal-shrinking film with electrical or gas heating according to required capacity); and Cold process (stretch hood film).
Complete mechanised logistics solution

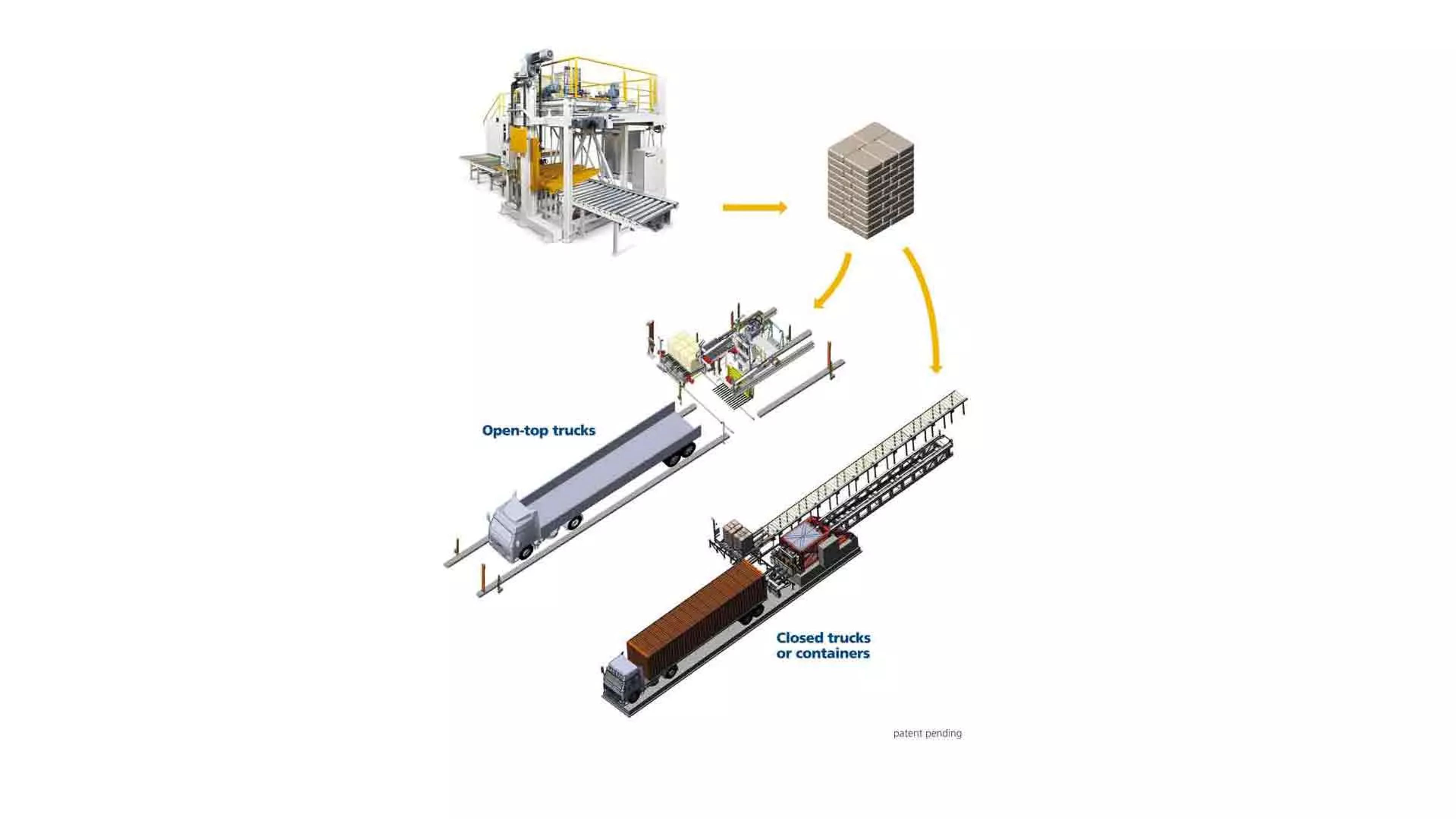

The VENTOMATIC® POLIMAT® is designed for easy interface with the VENTOMATIC® Flying Fork-Lift FFL and VENTOMATIC® FFL-4C automatic truck loader for direct loading on open trucks, closed trucks or standard containers. With this system, the stacks are placed directly onto the trucks without the need for manual or fork-lift handling. It’s safer for operators – and kinder on the stacks. You can choose to connect the palletizing line directly, or store the stacks first and retrieve them later.
Downloads
Brochures
VENTOMATIC® Complete Packing Plant Solutions
Our complete packing solutions are designed to maximise productivity, streamline operations, and ensure every bag is packed cleanly, accurately and safely.
06.11.2025 |
4.30 MB |
English
VENTOMATIC® Polimat Palletizing Solutions
02.02.2026 |
5.45 MB |
English
